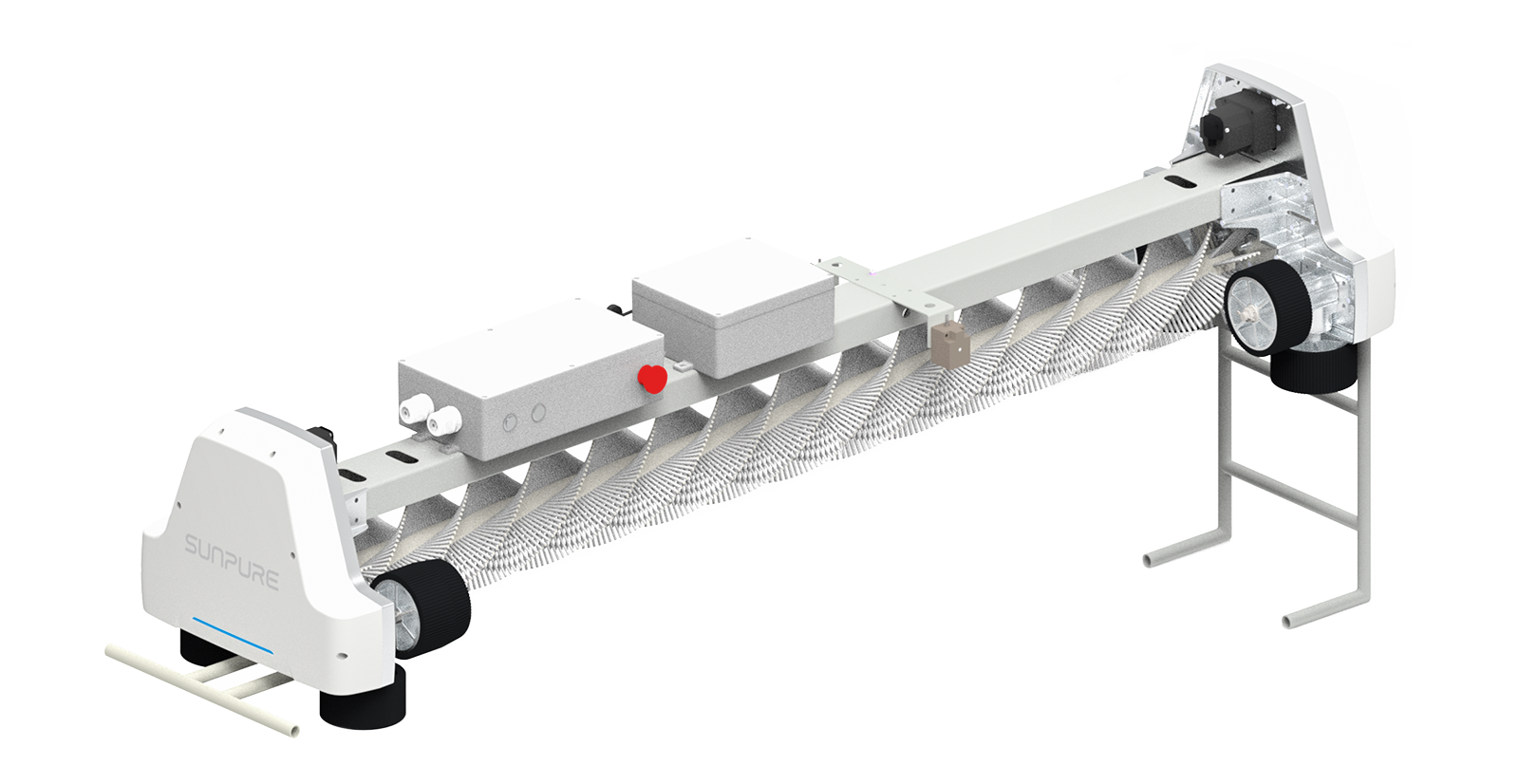

Semi-Automatic Railed PV Cleaning Robot
Venus

Semi-Automatic Railed PV Cleaning Robot
Venus

Product Highlights

  • Convenient handling, flexible cleaning
  • Efficient cleaning, module friendly
  • Intelligent control, stable operation
· The fully lightweight design, combined with auxiliary lifting tools, allows quick and convenient manual handling to target PV row
· Modular design enables rapid battery removal during the cleaning process, minimizing downtime to maximize robot utilization
· Equipped with physical buttons for convenient control. Emergency stop button immediately cuts power to ensure safety
· The brush is independently driven and allows speed adjustment based on contamination level, ensuring optimal cleaning performance
· Made from UV-resistant PBT bristles, the brush maintains <1% module degradation after 20,000 cleaning cycles
· Specifically engineered for dust accumulation belt, the hybrid brush roller provides more even cleaning
· The robot features active obstacle-crossing and tolerance for module offset, ensuring smooth cleaning
· Equipped with intelligent obstacle-crossing and proactive posture adjustment functions, adapting to complex environments, and preventing stucking

Technical Specifications

General and mechanical

  • Cleaning speed

    18±2 m/min

  • Max ambient temp (cleaning)

    -20℃~ 60℃

  • Max ambient temp (docking)

    -25℃~ 65℃

  • Relative humidity

    0~ 95% & non-condensing

  • Wind speed resistance (cleaning)

    15 m/s

  • Cleaning efficiency

    ≥99.5% (Daily cleaning)

  • Ingress protection

    IP65

  • Corrosion protection

    C4 (Customizable)

  • Cleaning type

    Dry cleaning

  • Life cycle

    25 Years

  • Control modes

    Local

  • Lifting tools

    Yes

Adaptive capability

  • Max climb angle

    30°

  • Cleanable tilt range

    0~ 60°

  • Tolerance of module vertical offset

    ≤50 mm

  • Tolerance of module horizontal offset

    ≤50 mm

  • Mounting structures

    Tracker, Fixed tilt

Power supply and battery

  • Battery capacity

    30 Ah

  • Rated voltage

    24 V

  • Power supply

    Charging / Battery swapping

  • Charging method

    Solar charge / Wall charger

  • Working duration

    ≥8 h

  • Charging Time

    6 h
