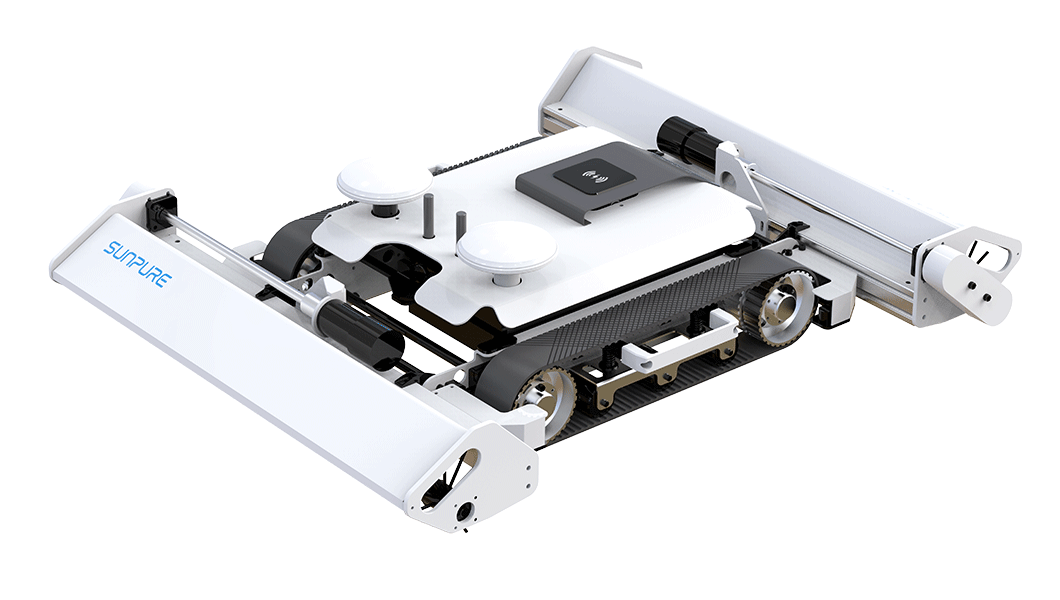

Trackless PV Cleaning Robot
Mars

Trackless PV Cleaning Robot
Mars

Product Highlights

  • L5 Autonomy level
  • Faster, more efficient
  • Safty & Durability
· Multi-sensor fusion positioning enables fully autonomous cleaning
· High-accuracy positioning combined with an optimal path algorithm ensures full-coverage
· Secondary positioning technology and wireless charging enables precise docking and fast recharging
· Two-brush system (front and rear) delivers up to 1800m²/h coverage with 99.5% cleaning efficiency
· Memorizes cleaning paths and seamlessly resumes after auto-recharging
· Plug-and-play design enables quick brush replacement and easy maintenance
· Intelligently detects module edges to prevent falls, ensuring safer operation
· IP65 dustproof and waterproof resistance with 8-year lifespan

Technical Specifications

General and mechanical

  • Dimensions

    780mm * 731mm * 316mm

  • Weight

    30 kg (without brush)

  • Brush length

    900mm / 1175mm / 1300mm

  • Brush weight

    8kg / 9kg / 10kg

  • Max cleaning capacity

    1800 m²/h

  • Max traveling speed

    25 m/min

  • Cleaning type

    Dry cleaning

  • Life cycle

    8 years

  • Warranty period

    1 year/2400 hours

  • Ingress protection

    IP65

  • Rated power

    360 W

  • Rated voltage

    24 V

  • Battery capacity

    30 Ah (customizable)

  • Battery life

    2000 cycles

  • Working duration

    4 h

  • Charging time

    3 h

  • Charging method

    Wireless charging

Adaptive capability

  • Operating mode

    Autonomous

  • Cleaning angle

    0°~ 15°

  • PV sub-array crossing

    Via bridge structure

  • Tolerance of module vertical gap

    40 mm

  • Tolerance of module horizontal gap

    120 mm

  • Working ambient temp

    -20℃~ 60℃

Communication and management

  • Network type

    4G + WIFI + LoRaWAN

  • Management platform

    SmartPure

  • Night time operation

    Yes

  • Resumes at break-points

    Yes

  • Monitoring terminal

    Web + APP

  • Positioning

    Based on RTK global positioning

  • Positioning accuracy

    ±1 cm

  • Fall prevention

    Virtual fence + ultrasound
