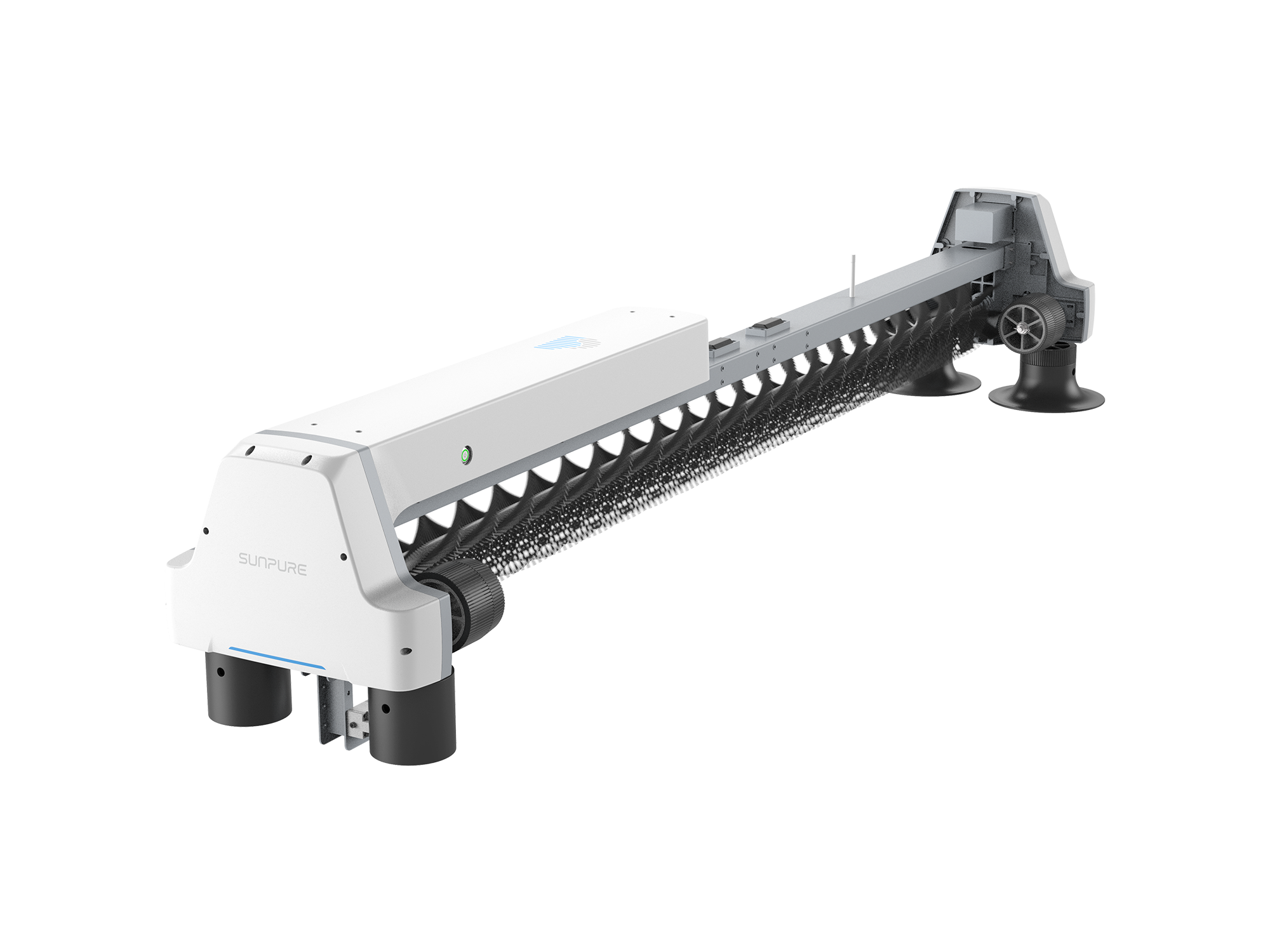

Railed PV Cleaning Robot
Venus

Railed PV Cleaning Robot
Venus

Product Highlights

  • Twistable structure, stronger adaptability to different scenarios
  • Global intelligence, more reliable for communication
  • lightweight structure, more friendly for modules
· The robot can be twisted, providing greater flexibility to tolerate module offset, while simultaneously eliminating blind spots in cleaning
· Jointly driven by 4 driving wheels and 2 guide wheels, the robot can climb slopes up to 30°
· The brush is driven independently, and the rotational speed can be adjusted automatically according to the working conditions
· Extra heavy brush density for module edges to address the issue of dust accumulation belt, ensuring more even cleaning
· Equipped with intelligent obstacle-crossing and proactive posture adjustment functions, adapting to complex environments, and preventing stucking
· Supports linkage with SCADAs such as weather and tracker to make autonomous decisions and execute cleaning strategies
· The platform provides real-time monitoring of robot position and data, enabling on-site O&M personnel to quickly diagnose and locate issues
· Adopting the LoRaWAN protocol, enabling seamless roaming across the entire site, communication unaffected by location, enabling robots to respond within seconds
· The entire robot is lighter, low aerodynamic drag. Weighing 20% lighter than the industry average, reducing module bending
· The docking station supports mechanically windproof, which can resist wind speed up to 55 m/s, and supports emergency stopping during operation
· The brush filament is made of UV-modified PBT. Degradation rate of modules caused by robots <1% after 20,000 times cleaning

Technical Specifications

General and mechanical

  • Cleaning speed

    18±2 m/min

  • Rotation angle

    ± 45°

  • Wind speed resistance(cleaning)

    15 m/s

  • Wind speed resistance(docking)

    55 m/s

  • Max ambient temp(cleaning)

    -20°C~60°C (≤20°C customizable)

  • Max ambient temp(docking)

    -25°C~65°C (≤25°C customizable)

  • Relative humidity

    0~ 95% &non-condensing

  • Cleaning efficiency

    ≥99.5%

  • Availability

    ≥99%

  • Cleaning frequency

    Once/day

  • Ingress protection

    IP65

  • Corrosion resistance

    C4

  • Cleaning type

    Dry cleaning

  • Power supply

    Self-powered

  • Life cycle

    25 Years

Adaptive capability

  • Tolerance of module vertical offset

    ≤50 mm

  • Tolerance of module horizontal offset

    ≤50 mm

  • Max climb angle

    30°

  • Cleanable tilt range

    0~ 60°

  • Mounting structures

    Tracker, Fixed tilt

Communication and management

  • Network type

    LoRaWAN + Bluetooth

  • Protocol

    Modbus

  • Monitoring terminal

    Web + APP

  • Control modes

    Auto + local + remote
