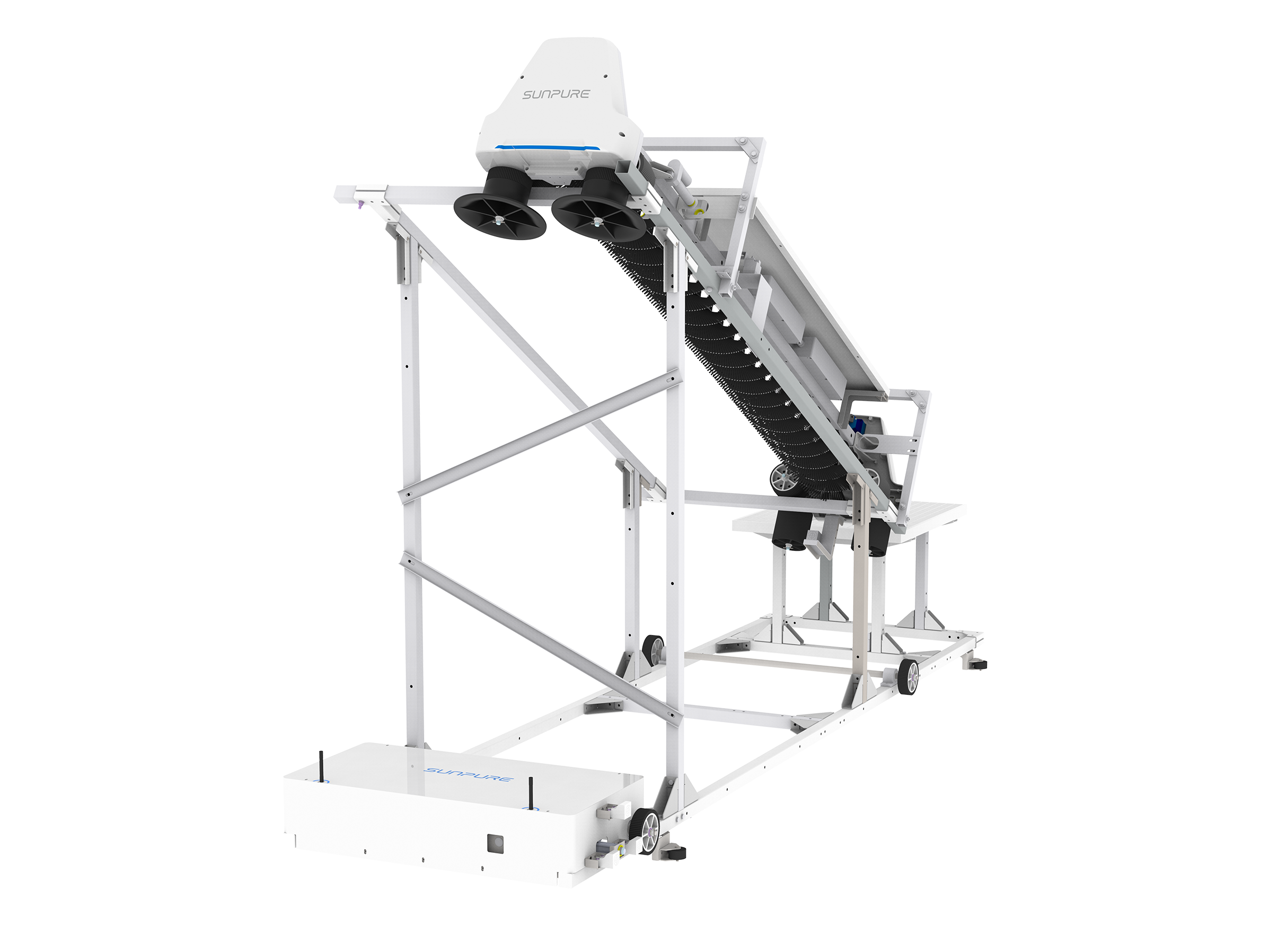

Intelligent Shuttle

Intelligent Shuttle

Product Highlights

  • Autonomous row switching, intelligent coordination
  • Flexible deployment, multi-scenario adaptability
  • Multiple protections, stable and reliable
· Autonomously transfers cleaning robots between PV rows without human intervention
· Supports cloud-based WEB/APP remote management, intelligent decision-making and planning, achieving efficient collaboration with cleaning robots
· Compatible with trackers and fixed tilt, adaptable to various types of power stations
· Equipped with a 24V self-powered system, eliminating the need for external power sources to enable more flexible operation and easier deployment
· Dual limiting mechanism with gearbox self-locking and physical locking effectively prevents displacement, ensuring safer operation
· With lP65 protection and C4 anti-corrosion rating, the entire unit is well-sealed and built to perform in harsh environments

Technical Specifications

General and mechanical

  • Cleaning speed

    13 m/min

  • Cleaning distance

    2000 m

  • Repeat positioning accuracy

    ±5 mm

  • Wind speed resistance (operating)

    15 m/s

  • Wind speed resistance (docking)

    55 m/s

  • Max ambient temp (operating)

    -20℃~ 60℃

  • Max ambient temp (docking)

    -25℃~ 65℃

  • Relative humidity

    0~ 95 % & non-condensing

  • Ingress protection

    IP65

  • Corrosion protection

    C4 (customizable)

  • Power supply

    Self-powered

  • System power

    150 W

  • Self-supplied module power

    90 W

  • Battery capacity

    15 Ah

  • Life cycle

    25 Years

Adaptive capability

  • Max rail slope

  • Mounting structures

    Tracker, Fixed tilt

Communication and management

  • Network type

    LoRaWAN + Bluetooth

  • Protocol

    Modbus

  • Monitoring terminal

    Web + APP

  • Control modes

    Auto + Local + Remote
